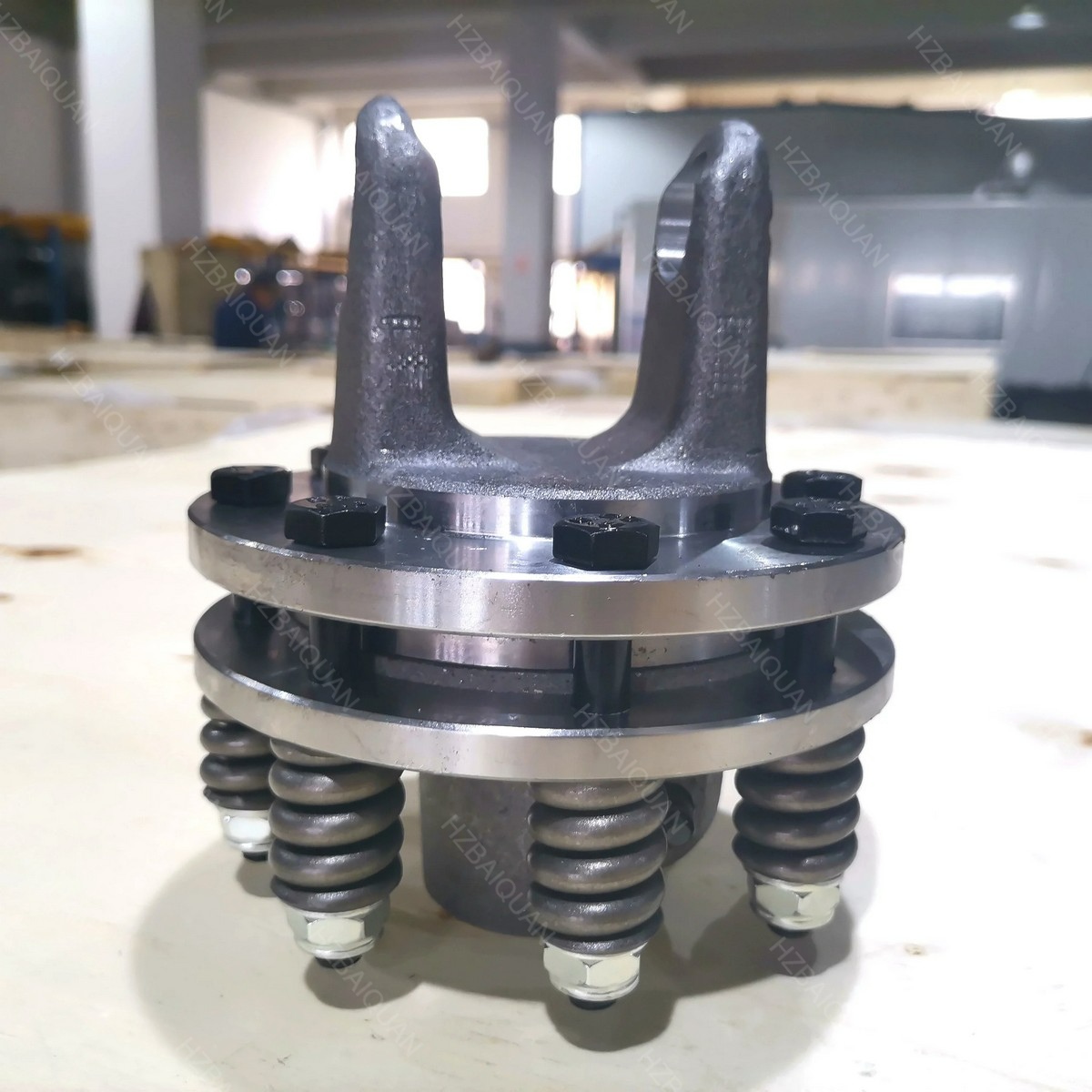

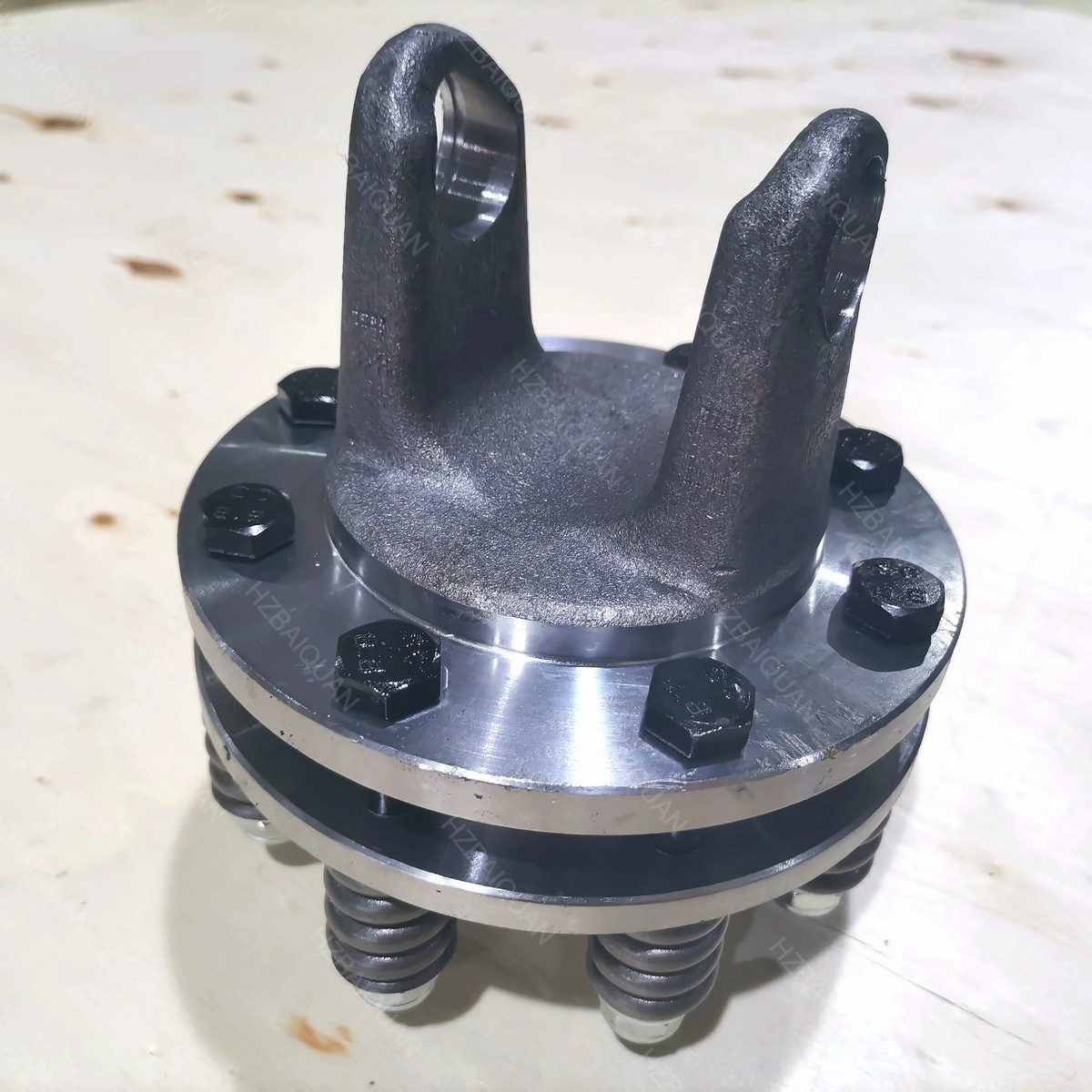

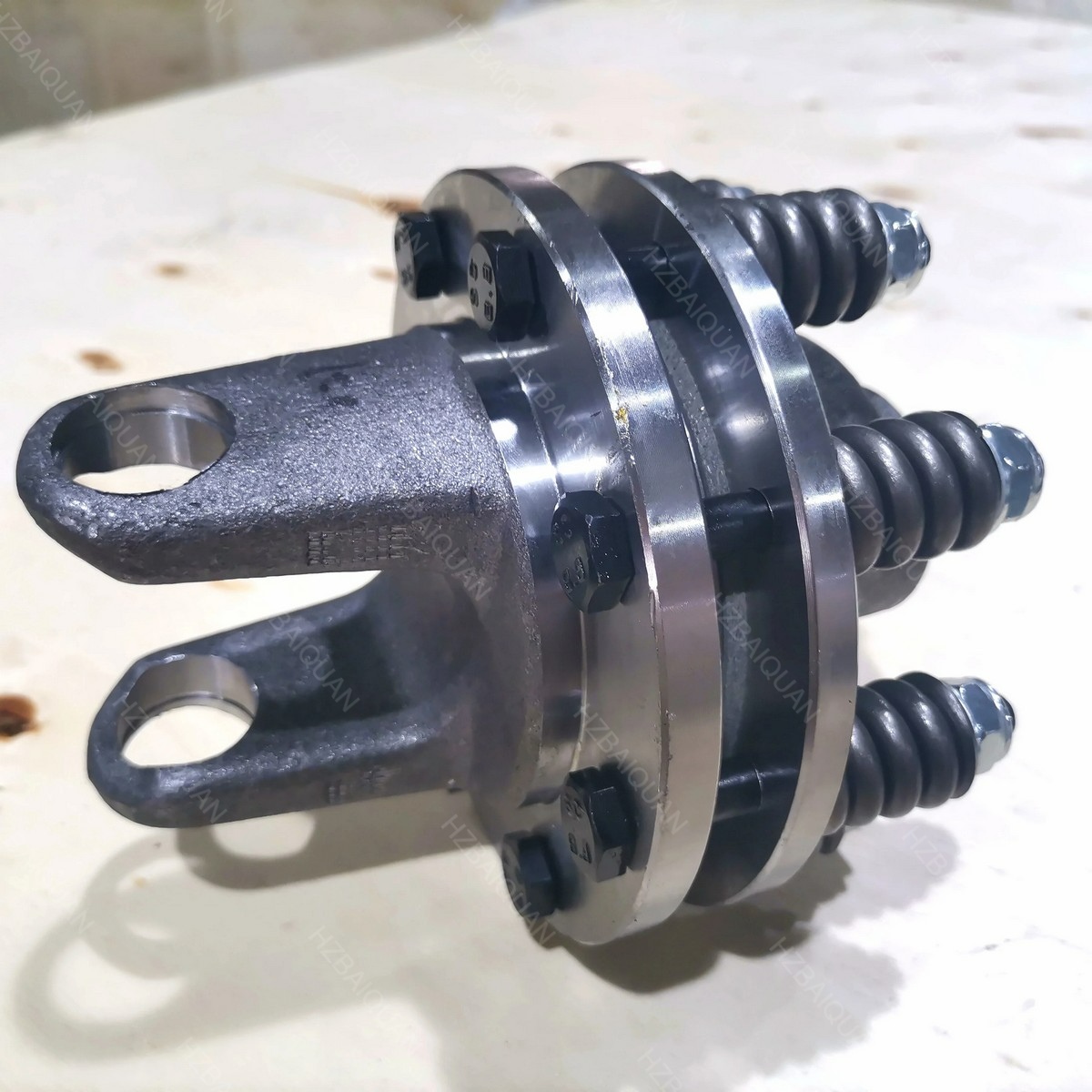

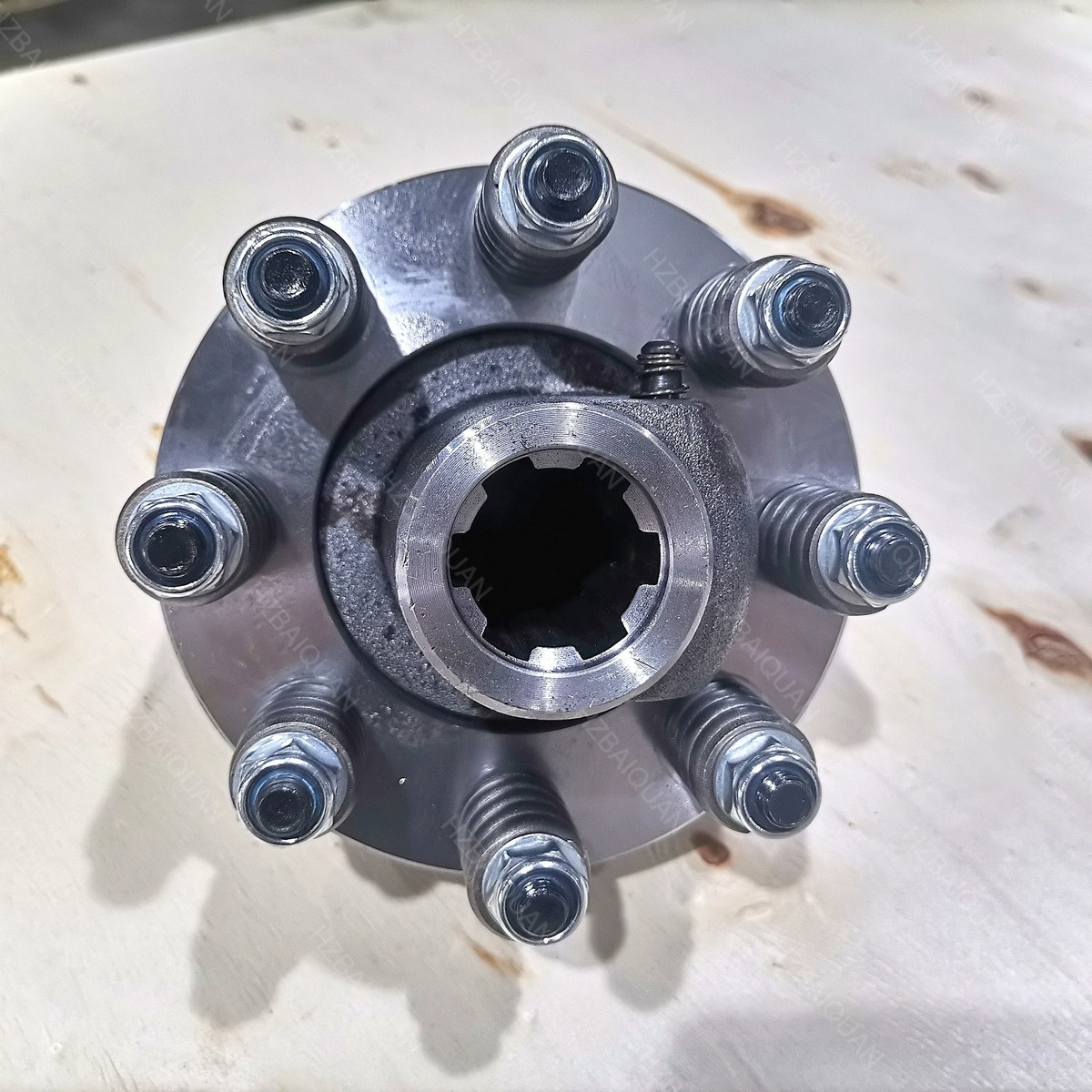

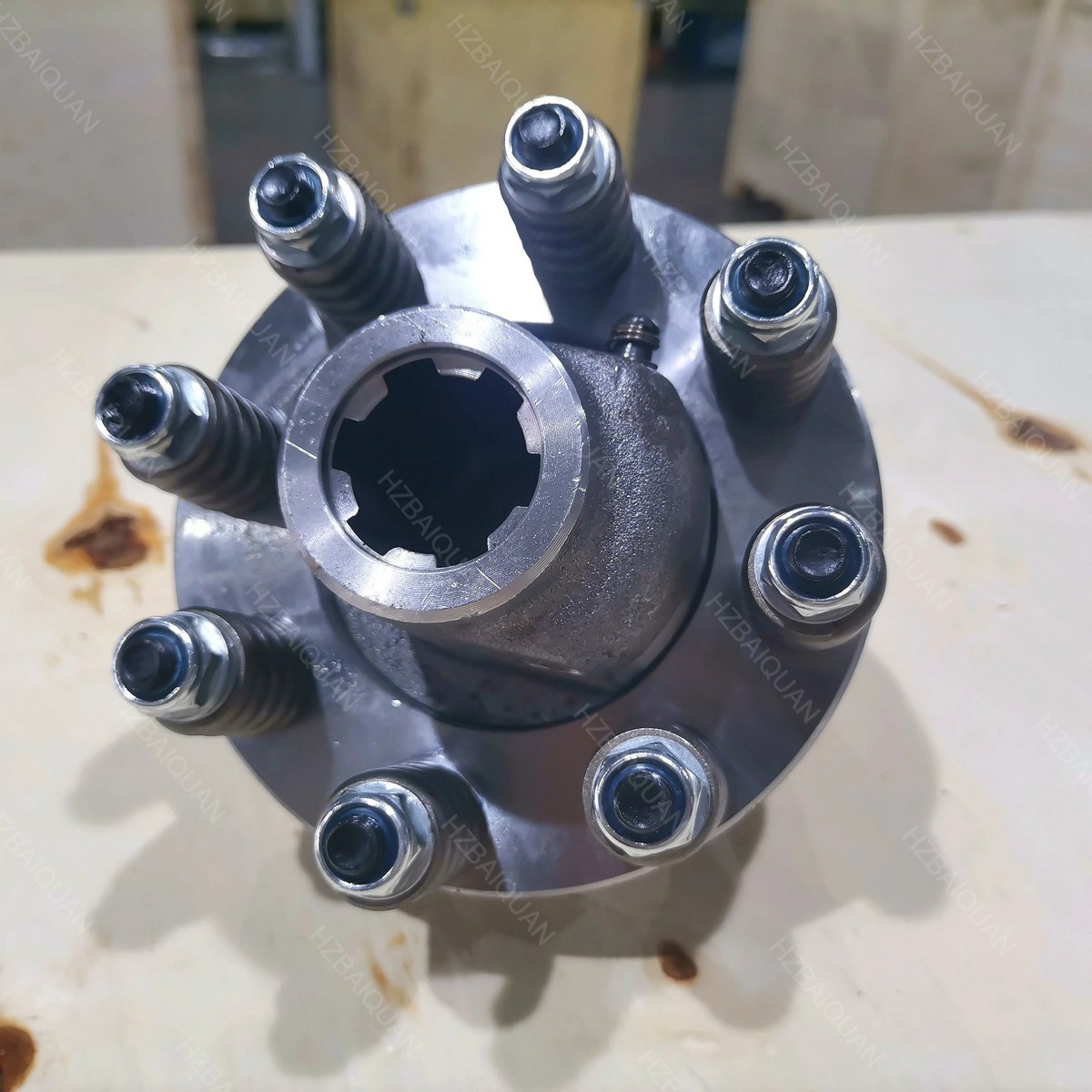

Friction Torque Limiter Clutch PTO Shaft
Part name : Tractor Steel Clutch Friction Torque Limiter Customized Friction Torque Limited Clutch of PTO Shaft
Spline: 1 3/8″ Z6
Material: Steel 44#, 40Cr.
Process: Forged
Surface: Heat treatment; Rust prevention
Warranty : 12 months
Place of Origin : Zhejiang Province, China
| Series | Max Torque(nm) | Friction Disc | Spline | A(mm) | B(mm) | C(mm) |
| 4FF0 | 800 | Φ120 |
1 3/8″ Z6 | 135 |
29 | Φ160 |
| 5FF0 | 1000 | 137 | ||||
| 4FF1 | 1200 | Φ140 |
1 3/8″ Z6 | 150 |
29 | Φ180 |
| 4FF1D | 1 3/8″ Z21 | |||||
| 5FF1 | 1 3/8″ Z6 | 152 |
||||
| 5FF1D | 1 3/8″ Z21 | |||||
| 6FF1 | 1 3/8″ Z6 | 160 | ||||
| 6FF1D | 1 3/8″ Z21 | |||||
| 4FF2 | 1500 | Φ160 |
1 3/8″ Z6 | 150 |
29 | Φ200 |
| 4FF2D | 1 3/8″ Z21 | |||||
| 5FF2 | 1500 | Φ160 |
1 3/8″ Z6 | 152 | 29 | Φ200 |
| 5FF2D | 1 3/8″ Z21 | |||||
| 5FF2C | 1 3/8″ Z6 | |||||
| 5FF2E | 1 3/8″ Z20 | |||||
| 6FF2 | 1500 | Φ160 |
1 3/8″ Z6 | 164 | 29 | Φ200 |
| 6FF2D | 1 3/8″ Z21 | |||||
| 6FF2C | 1 3/8″ Z6 | |||||
| 6FF2E | 1 3/8″ Z20 | |||||
| 7FF2 | 1800 | Φ160 |
1 3/8″ Z6 | 169 | 29 | Φ200 |
| 7FF2D | 1 3/8″ Z21 | |||||
| 7FF2C | 1 3/8″ Z6 | |||||
| 7FF2E | 1 3/8″ Z20 | |||||
| 7NFF2 | 1 3/8″ Z6 | 164 | 29 | |||
| 7NFF2D | 1 3/8″ Z21 | |||||
| 7NFF2C | 1 3/8″ Z6 | |||||
| 7NFF2E | 1 3/8″ Z20 | |||||
| 8FF2 | 1 3/8″ Z6 | 169 | 29 | |||
| 8FF2D | 1 3/8″ Z21 | |||||
| 8FF2C | 1 3/8″ Z6 | |||||
| 8FF2E | 1 3/8″ Z20 |
MOQ: 20 PCS
Customized packaging: 100 PCS
Accept : OEM.ODM
CE and ISO9001
Packaging: Neutral packing + wooden box/ pallet
Delivery: Customized order 35- 45 Days, stock order 3-5 days.
