1 series / 2 series / 3 series / 4 series / 5 series / 6 series / 7 series / 8 series pto shaft

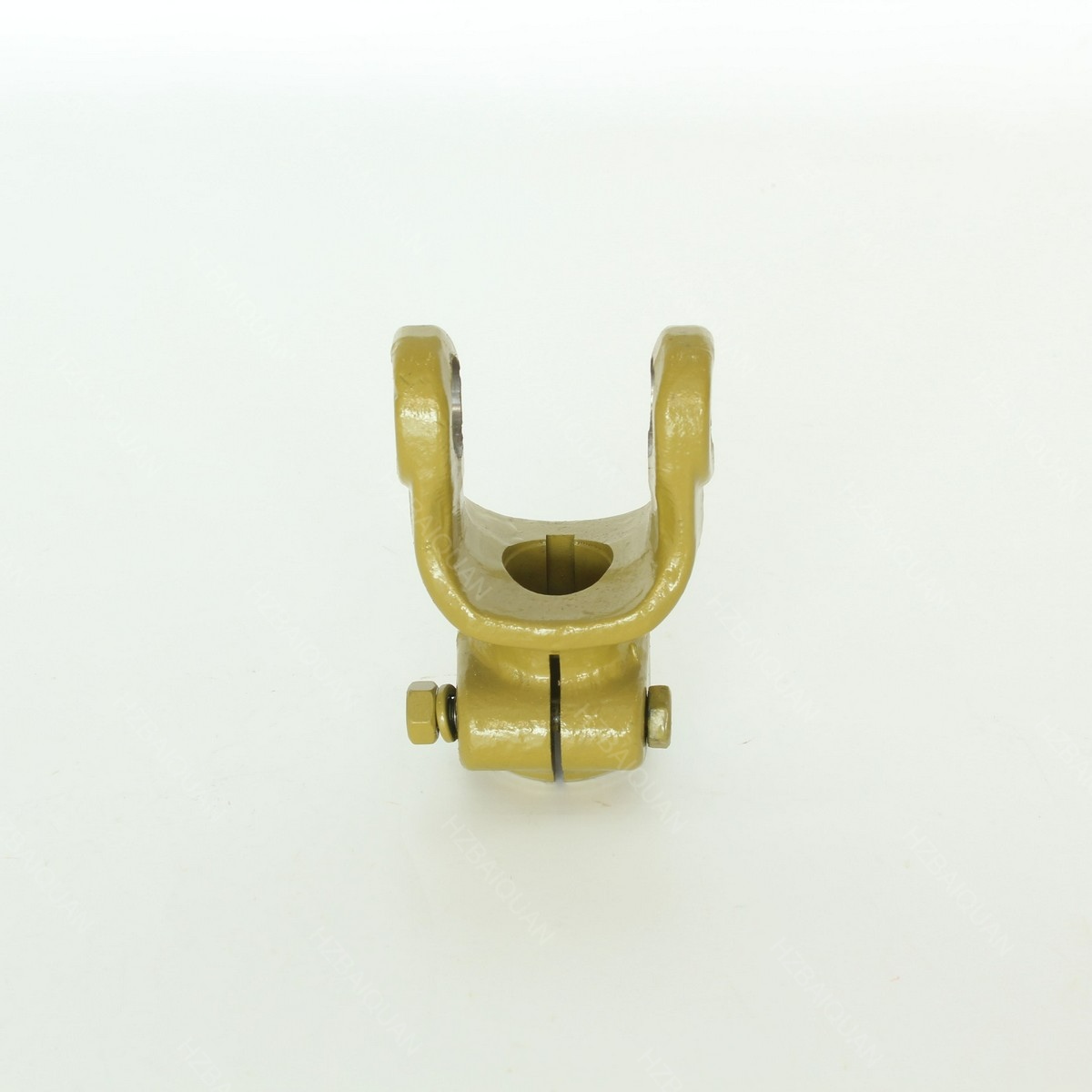

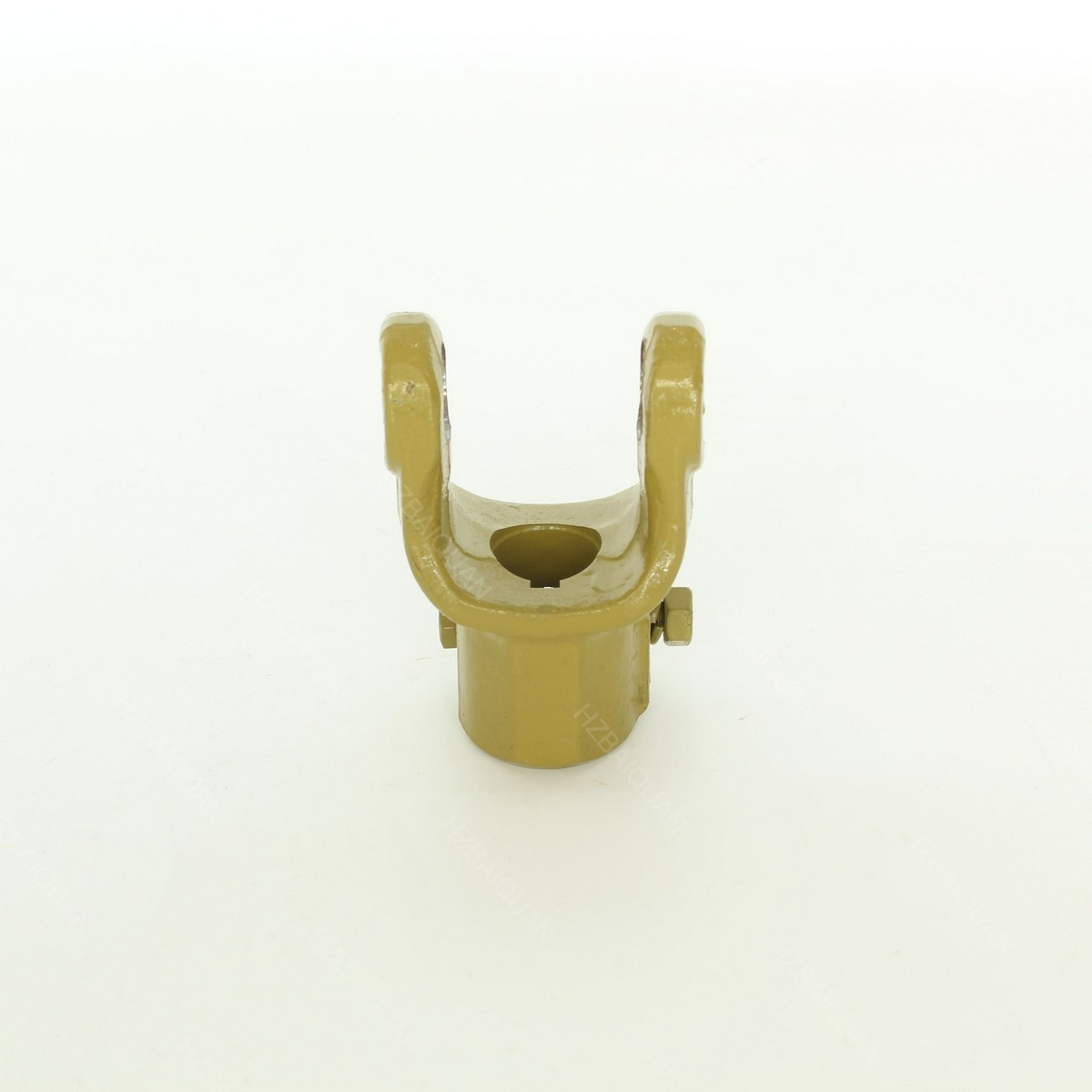

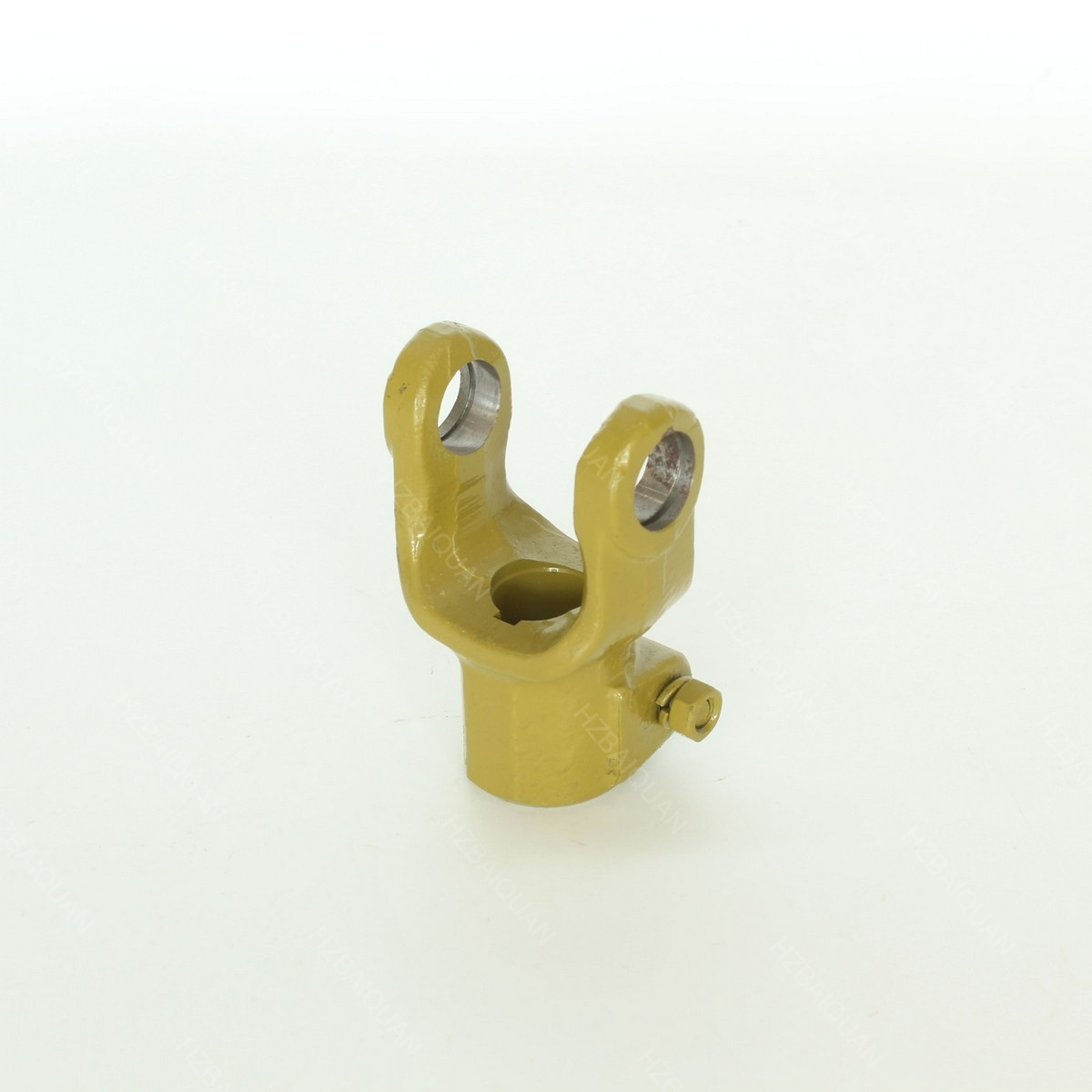

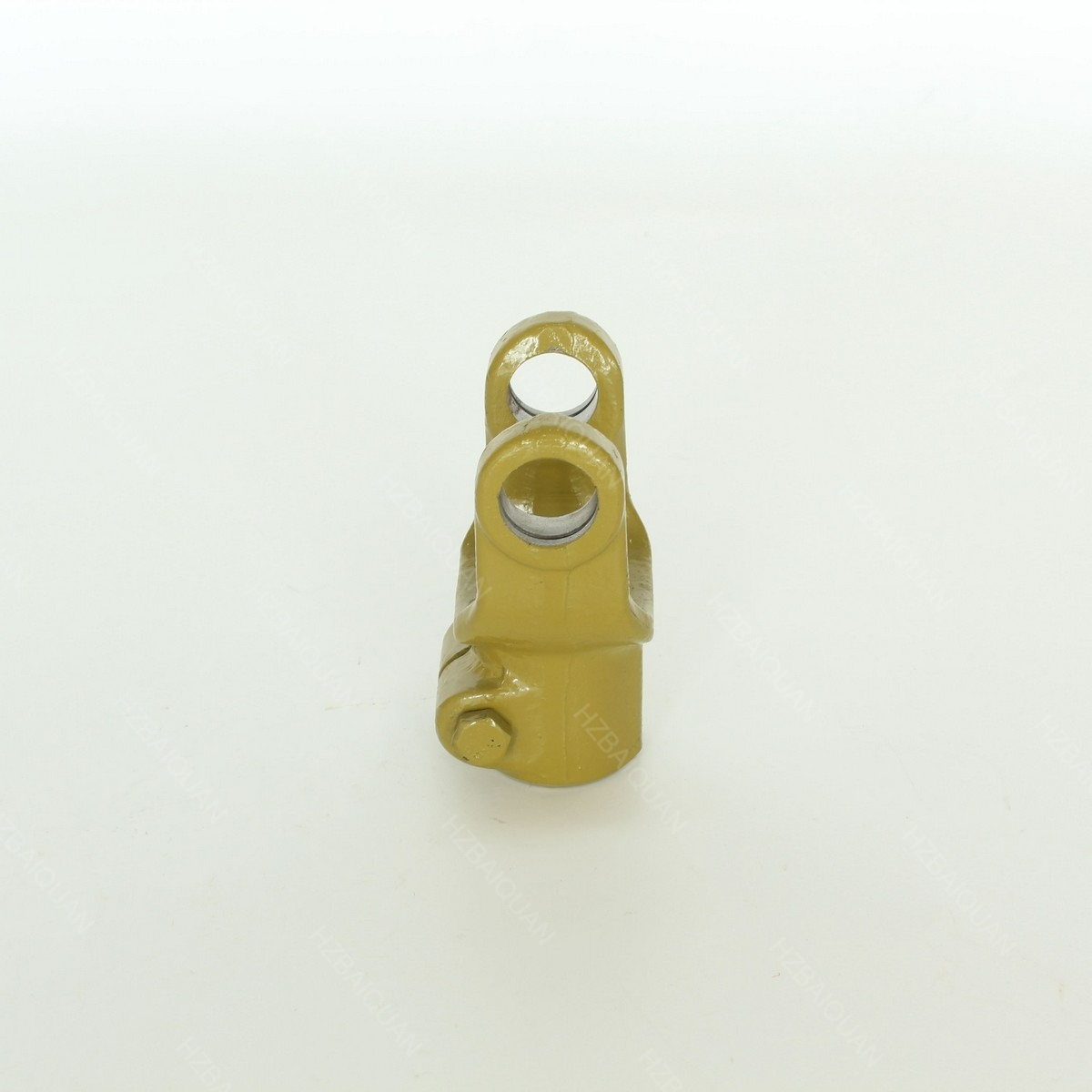

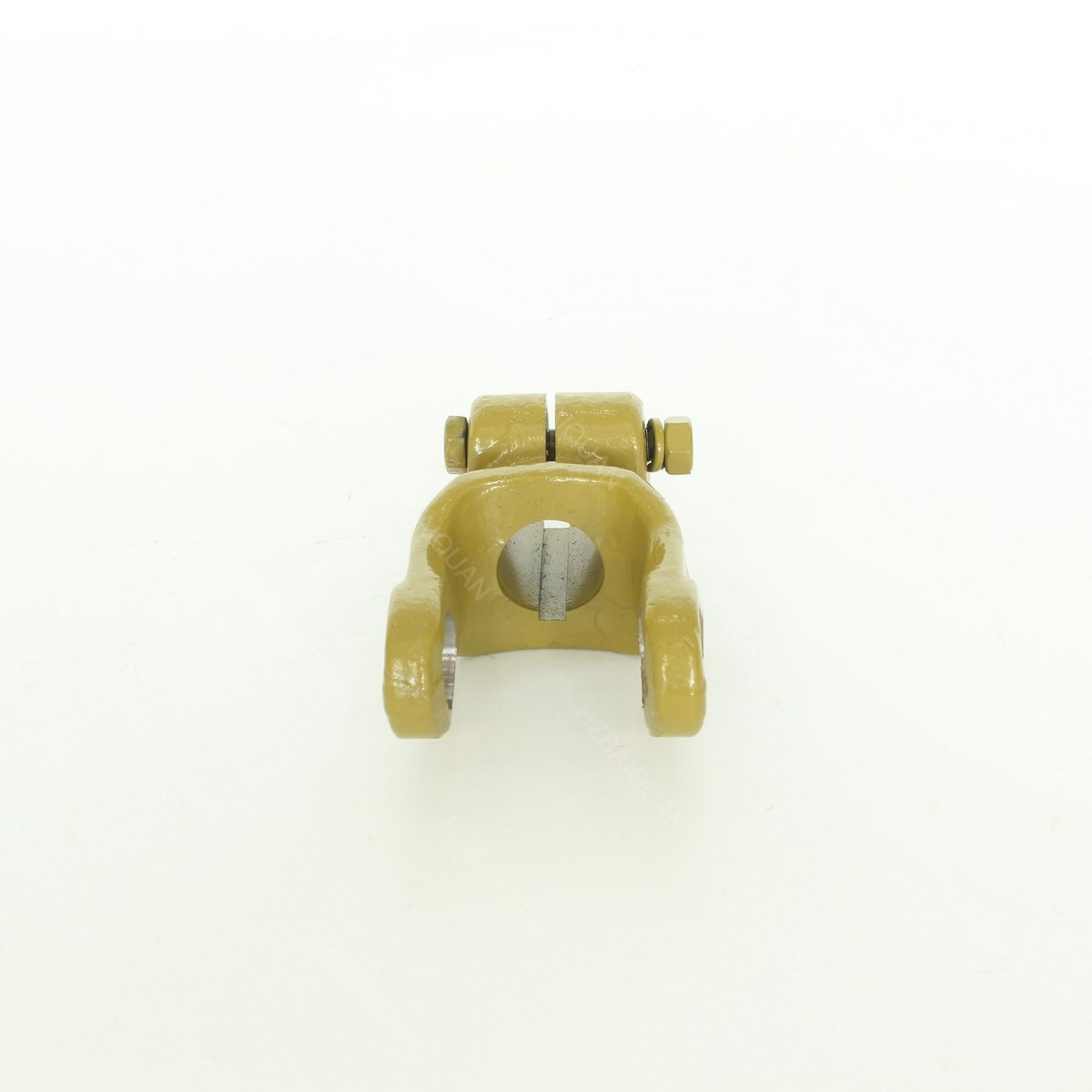

Part name : Plain Bore Yoke D-Keyway & Clamp Bolt
Cross dimension : 27 x 54 mm
Color : Yellow
Material: Steel 44#, 40Cr.
Process: Forged
Surface: Heat treatment; Rust prevention
Warranty : 12 months
Place of Origin : Zhejiang Province, China
| Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
| 1.05D20 | 22 | 54 | 93 | 21 | 6 | 12.8 | 20 |
| 1.05D22 | 8 | 18.3 | 30 | ||||
| 1.05D32 | 10 | 19.3 | 32 | ||||
| 2.05D25 | 23.8 | 61.3 | 102 | 21 | 8 | 15.8 | 25 |
| 2.05D30 | 18.3 | 30 | |||||
| 2.05D32 | 10 | 19.3 | 32 | ||||
| 3.05D25 | 27 | 70 | 108 | 21 | 8 | 15.8 | 25 |
| 3.05D32 | 19.3 | 32 | |||||
| 3.05D35 | 12 | 20.8 | 35 | ||||
| 4.05D25 | 27 | 74.6 | 108 | 21 | 8 | 15.8 | 25 |
| 4.05D32 | 19.3 | 32 | |||||
| 4.05D38 | 10 | 22.3 | 38 | ||||
| 5.05D32 | 30.2 | 80 | 108 | 21 | 10 | 19.3 | 32 |
| 5.05D35 | 20.8 | 35 | |||||
| 6.05D30 | 30.2 | 92 | 118 | 21 | 8 | 18.3 | 30 |
| 6.05D32 | 10 | 19.3 | 32 | ||||
| 6.05D38 | 12 | 22.3 | 38 | ||||
| 6.05D45 | 14 | 26.3 | 45 | ||||
| 6.05D50 | 28.8 | 50 | |||||
| 7.05D30 | 30.2 | 106.5 | 130 | 25 | 8 | 18.3 | 30 |
| 7.05D35 | 10 | 20.8 | 35 | ||||
| 7.05D40 | 12 | 23.3 | 40 | ||||
| 8.05D30 | 35 | 106.5 | 130 | 25 | 8 | 18.3 | 30 |
| 8.05D35 | 10 | 20.8 | 35 | ||||
| 8.05D40 | 12 | 23.3 | 40 | ||||
| 8.05D45 | 14 | 26.3 | 45 |
MOQ: 20 PCS
Customized packaging: 100 PCS
Accept : OEM.ODM
CE and ISO9001
Packaging: Neutral packing + wooden box/ pallet
Delivery: Customized order 35- 45Days, stock order 3-5 days.
