6 series / 7 series / 8 series / 7N series / 32 series / 36 series / 9 series / 10 series / 42 series / 50 series pto shaft to connect the steel tube to the tractor and implement

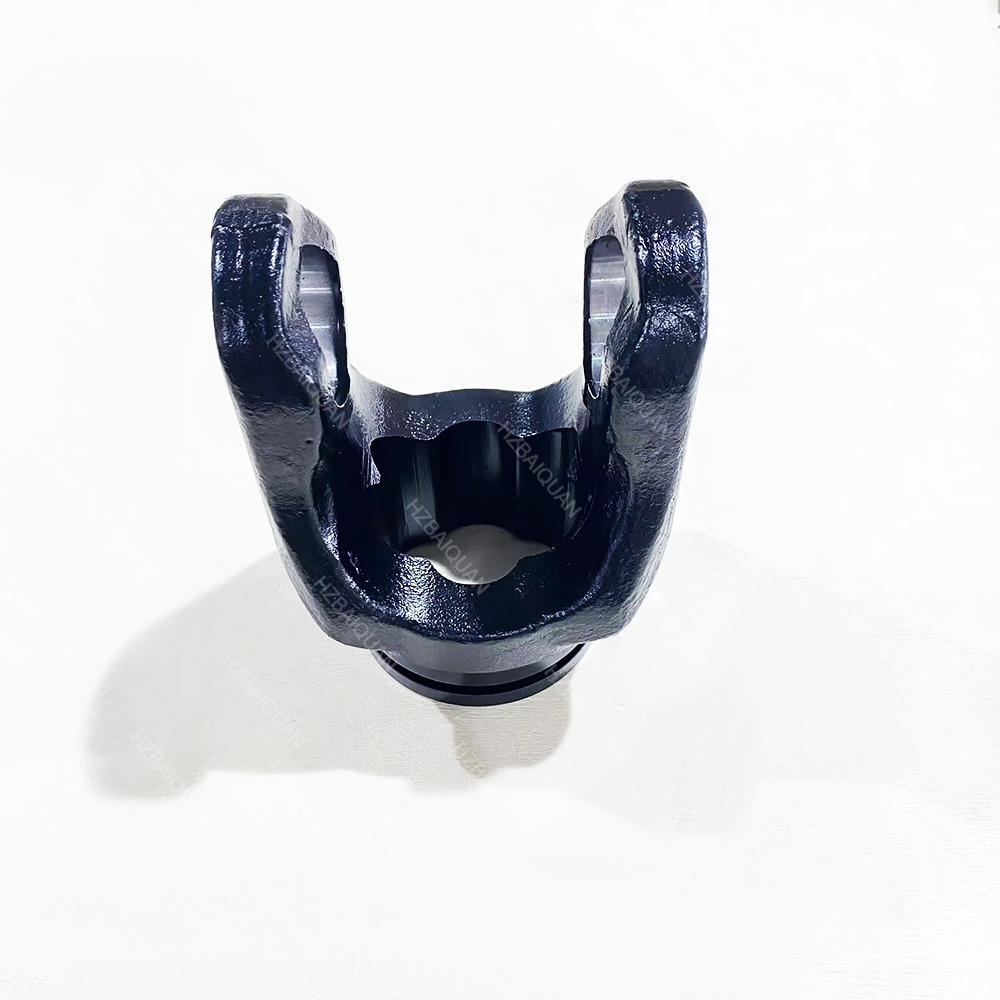

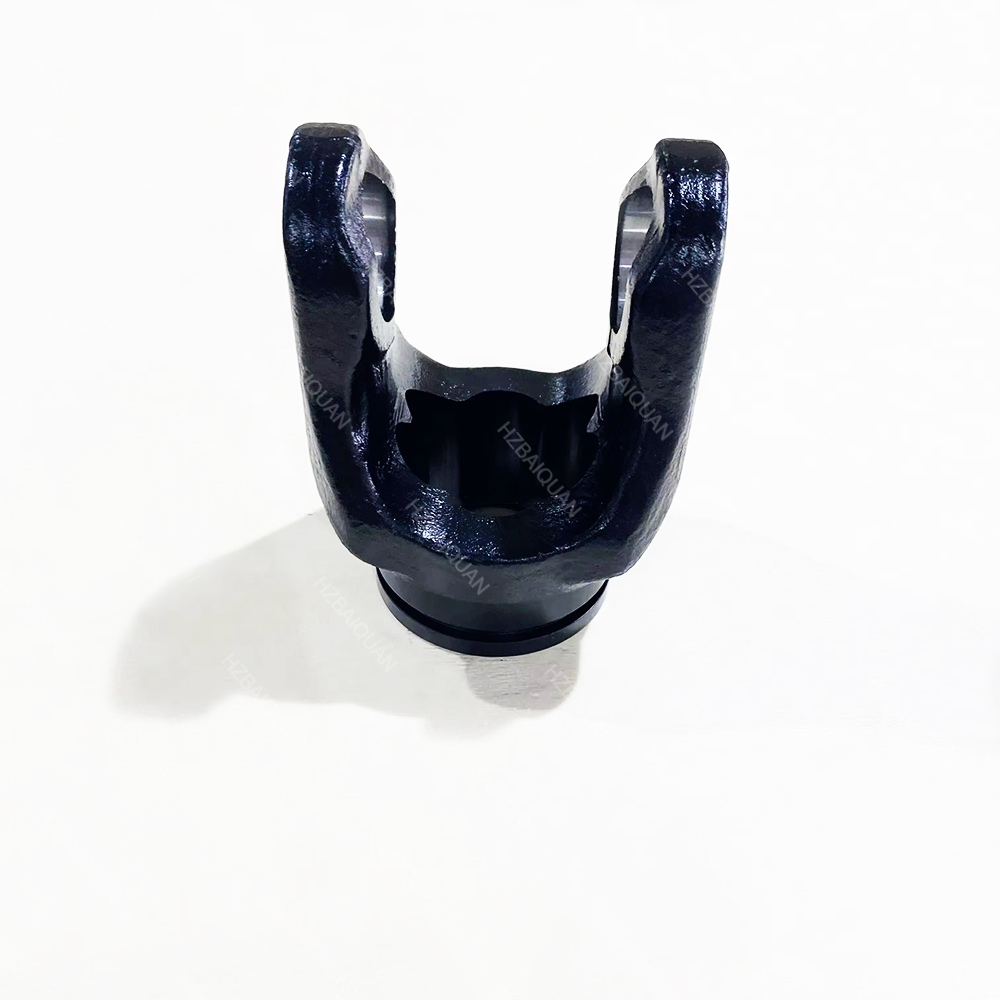

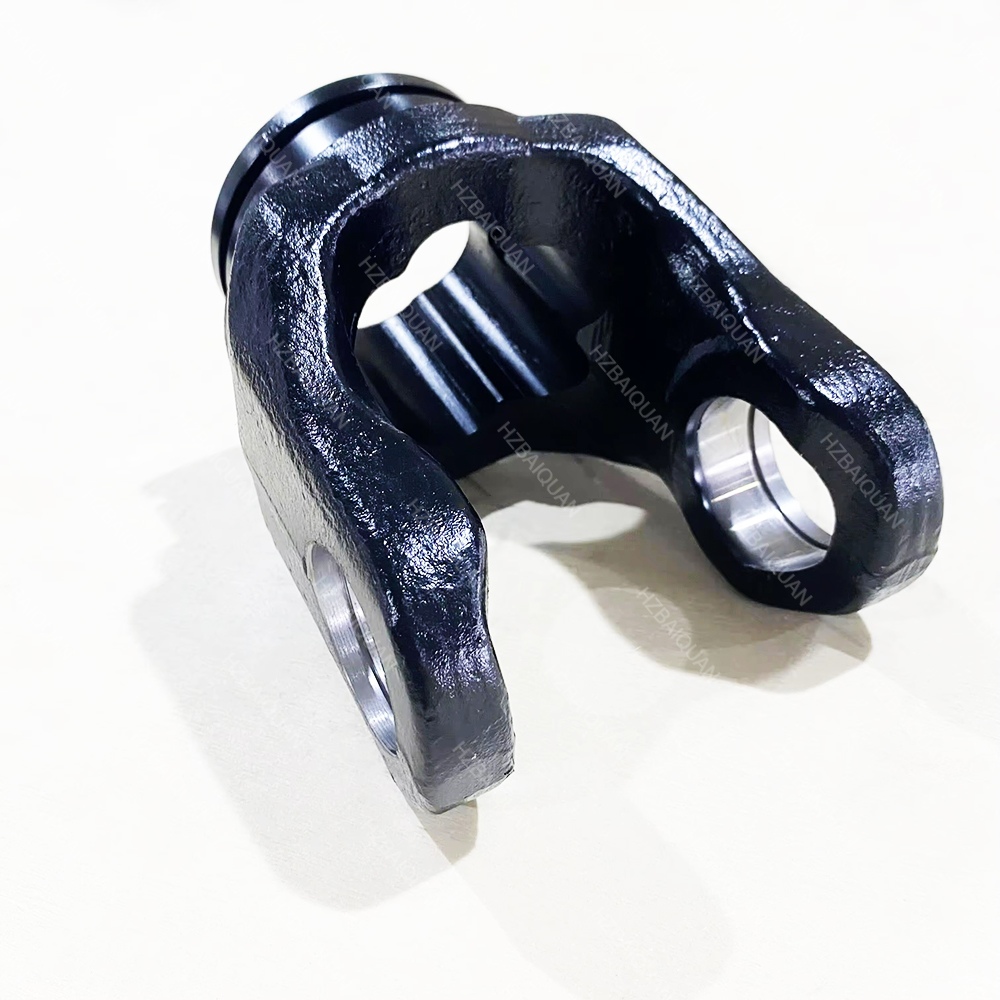

Part name : 8 Series Pto shaft star yoke
Cross dimension : 35*106.5 mm
Color : Black
Material: Steel 44#, 40Cr.
Process: Forged
Surface: Heat treatment; Rust prevention
Warranty : 12 months
Place of Origin : Zhejiang Province, China
| Series | A(mm) | B(mm) | C(mm) | D(mm) |
| 6.06ST | 30.2 | 92 | 104 | 56.8 |
| 6.07ST | 30.2 | 92 | 104 | 47.4 |
| 7.06ST | 30.2 | 106.5 | 117 | 56.8 |
| 7.07ST | 30.2 | 106.5 | 117 | 47.4 |
| 8.06ST | 35 | 106.5 | 121 | 56.8 |
| 8.07ST | 35 | 106.5 | 121 | 47.4 |
| 7N.06ST | 35 | 94 | 106 | 56.8 |
| 7N.07ST | 35 | 94 | 106 | 47.4 |
| 32.06ST | 32 | 76 | 98 | 56.8 |
| 32.07ST | 32 | 76 | 98 | 47.4 |
| 36.06ST | 36 | 89 | 106 | 56.8 |
| 36.07ST | 36 | 89 | 106 | 47.4 |
| 9.06ST | 41 | 108 | 130 | 67.5 |
| 9.07ST | 41 | 108 | 130 | 56.8 |
| 10.06ST | 41 | 118 | 125 | 67.5 |
| 10.07ST | 41 | 118 | 125 | 56.8 |
| 42.06ST | 42 | 104.5 | 130 | 67.5 |
| 42.07ST | 42 | 104.5 | 130 | 56.8 |
| 50.06ST | 50 | 118 | 133 | 67.5 |
| 50.07ST | 50 | 118 | 133 | 56.8 |
MOQ: 20 PCS
Customized packaging: 100 PCS
Accept : OEM.ODM
CE and ISO9001
Packaging: Neutral packing + wooden box/ pallet
Delivery: Customized order 35- 45Days, stock order 3-5 days.
