BAIQUAN
1 series / 2 series / 3 series / 4 series / 5 series / 32 series pto shaft

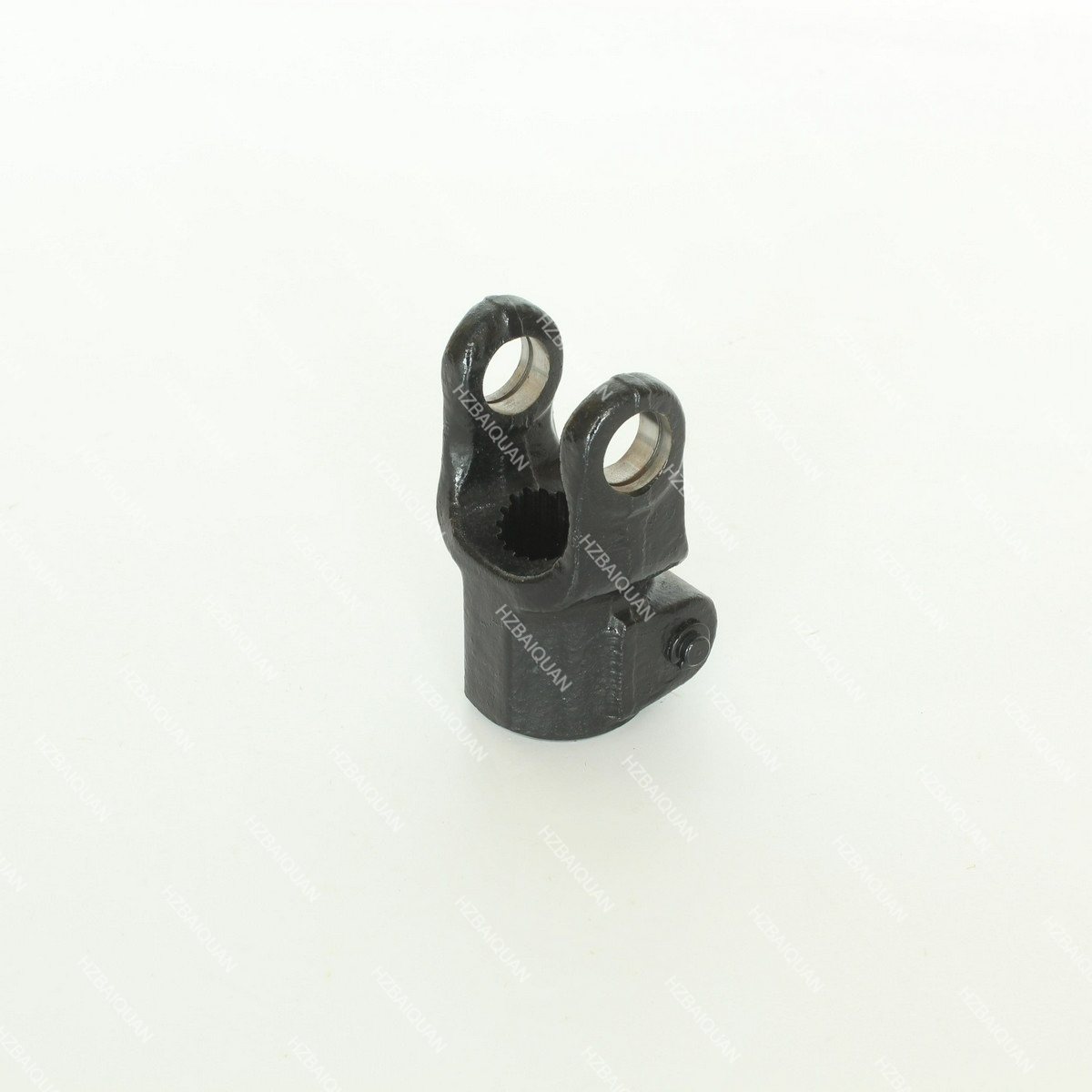

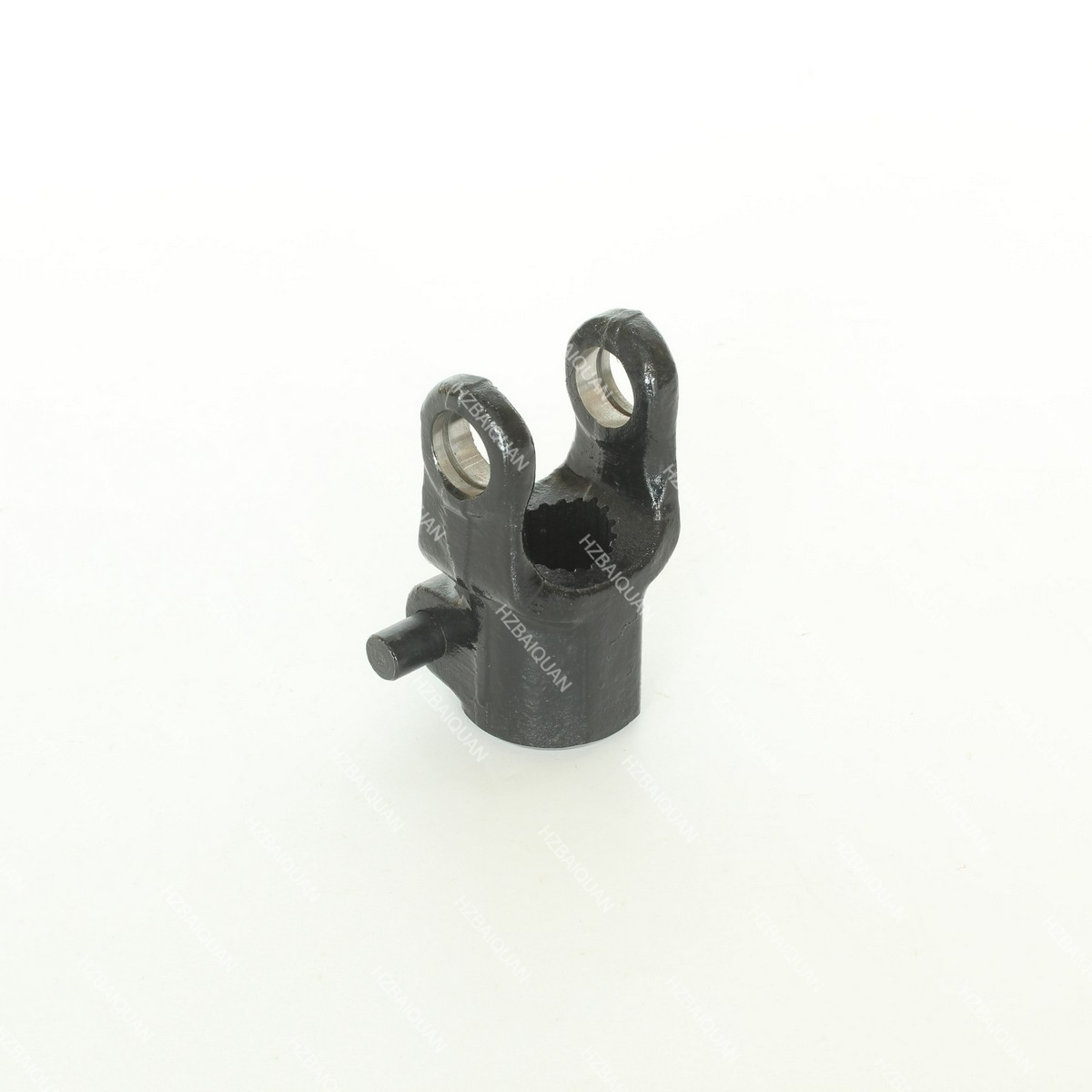

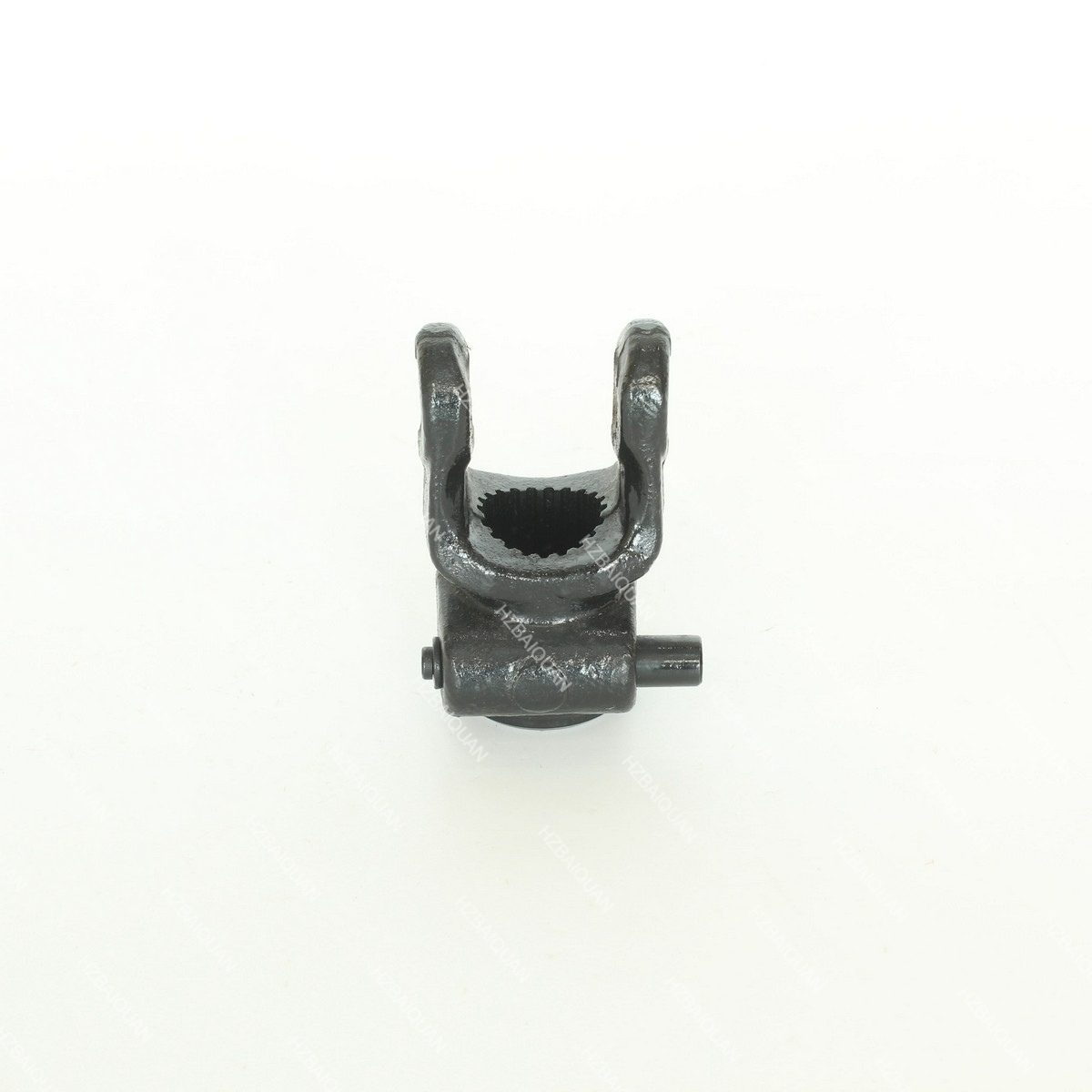

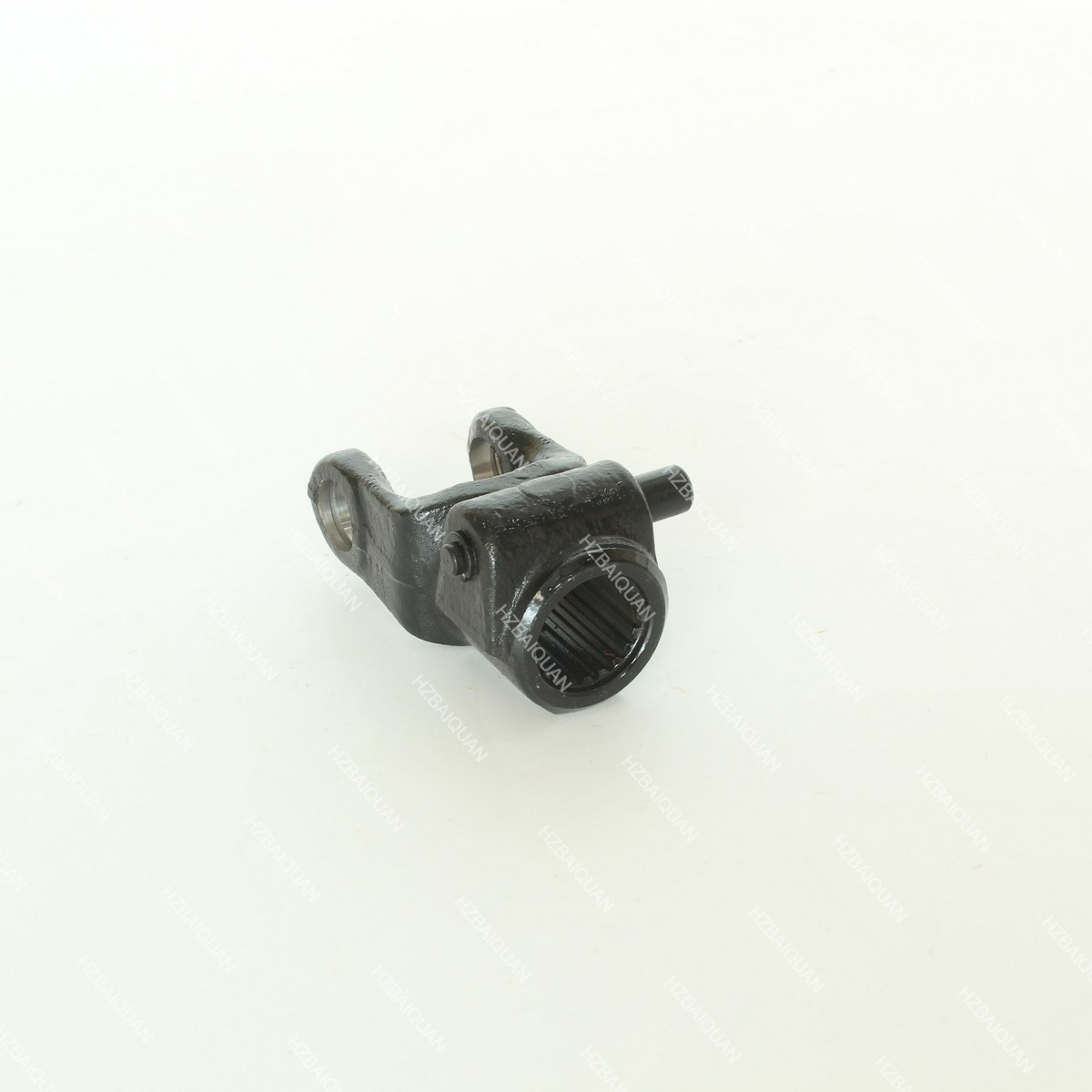

Part name : Tractor 1 3/8″ Z21 spline end yoke with push pin quick disconnect
Cross dimension : 22*54 mm
Color : Black
Spline: 1 3/8″ Z6
Warranty : 12 months
Place of Origin : Zhejiang Province, China
| Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F |
| 1.0507B | 22 | 54 | 93 | 23 | 22 | 1 3/8″ Z6 |
| 1.0507D | 1 3/8″ Z21 | |||||
| 1.0505G | 23.8 | 8-32*38*6 | ||||
| 2.0507B | 23.8 | 61.3 | 102 | 21 | 22 | 1 3/8″ Z6 |
| 2.0507D | 1 3/8″ Z21 | |||||
| 2.0507G | 23.8 | 8-32*38*6 | ||||
| 3.0507B | 27 | 70 | 108 | 21 | 22 | 1 3/8″ Z6 |
| 30507D | 1 3/8″ Z21 | |||||
| 3.0507G | 23.8 | 8-32*38*6 | ||||
| 4.0507B | 27 | 74.6 | 108 | 21 | 22 | 1 3/8″ Z6 |
| 4.0507D | 1 3/8″ Z21 | |||||
| 4.0507G | 23.8 | 8-32*38*6 | ||||
| 5.0507B | 30.2 | 80 | 108 | 21 | 22 | 1 3/8″ Z6 |
| 5.0507D | 1 3/8″ Z21 | |||||
| 5.0507G | 23.8 | 8-32*38*6 | ||||
| 32.0507B | 32 | 76 | 108 | 21 | 22 | 1 3/8″ Z6 |
| 32.0507D | 1 3/8″ Z21 | |||||
| 32.0507G | 23.8 | 8-32*38*6 | ||||
| 6.0507B | 30.2 | 92 | 118 | 23 | 22 | 1 3/8″ Z6 |
| 6.0507D | 1 3/8″ Z21 | |||||
| 6.0507G | 118 | 23.8 | 8-32*38*6 | |||
| 6.0507C | 22 | 26.5 | 1 3/4″ Z6 | |||
| 6.0507E | 1 3/4″ Z20 | |||||
| 7.0507B | 30.2 | 106.5 | 130 | 25 | 22 | 1 3/8″ Z6 |
| 7.0507D | 1 3/8″ Z21 | |||||
| 7.0507G | 23.8 | 8-32*38*6 | ||||
| 8.0507B | 35 | 106.5 | 130 | 25 | 22 | 1 3/8″ Z6 |
| 8.0507D | 1 3/8″ Z21 | |||||
| 8.0507G | 130 | 23.8 | 8-32*38*6 | |||
| 8.0507C | 25 | 26.5 | 1 3/4″ Z6 | |||
| 8.0507E | 1 3/4″ Z20 |
MOQ: 20 PCS
Customized packaging: 100 PCS
Accept : OEM.ODM
CE and ISO9001
Packaging: Neutral packing + wooden box/ pallet
Delivery: Customized order 35- 45Days, stock order 3-5 days.
